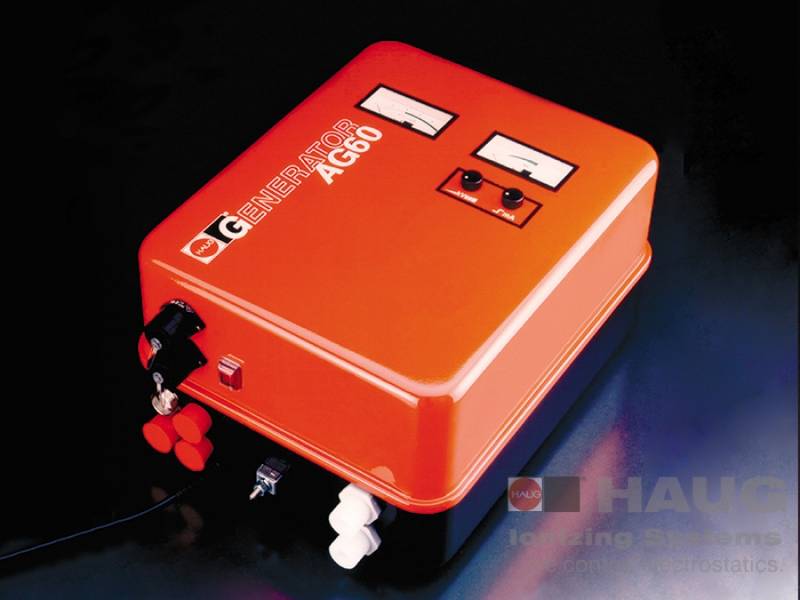

Charging generator AG 60
The charging generator AG 60 is a high-voltage generator which is used in combination with HAUG charging electrodes and a suitable counter-electrode. The charging electrode must be attached at a distance of 10–20 mm above the material to be charged, exactly opposite the counter-electrode.
Where a grounded counter-electrode is used, this counter-electrode must make contact with the material to be charged. In order to achieve a continuous, controlled charge, we strongly recommend that before charging the materials to be fixed to one another be discharged using a suitable HAUG ionization system.
HAUG-Charging systems
HAUG charging systems are designed to apply electrostatic charges without physical contact. These systems can be used for any application where different materials are to be pinned together electrostatically. At least, one of these materials must be non-conductive. The electrostatic pinning serves to enhance subsequent processes, such as film/foil overlapping in packaging machines.
Special features and advantages
The charging generator AG 60 generates an adjustable high voltage of up to 40 kVDC. The unit is available with positive and negative polarity. The voltage and the actual current are indicated on the integrated measuring instruments. The high voltage and the current threshold can be set using two separate potentiometers. If the actual current exceeds the set value, an error message is triggered and the high voltage is switched off. The charging section of the charging generator AG 60 can be pulsed externally. The discharging section allows a signaling device to be controlled using the integrated signaling socket.
Applications
HAUG charging systems can be used, among others, in the following applications:
- for fixing and positioning films and foils, paper and cardboard, e.g. on steel sheets, glass panels, wood panels or similar;
- for fixing films and foils on packaging machines / film welding machines;
- for fixing films and foils on turrent film winders, for fixing the wound film against telescoping and glue-less commencement of the film winding process on cardboard tubes.
Technical data
| Types | AG 60 | 230 V positive 115 V positive | Order-No.: 09.7660.300 Order-No.: 09.7661.300 |
| AG 60 | 230 V negative 115 V negative | Order-No.: 09.7662.300 Order-No.: 09.7663.300 | |
| Dimensions | 390 x 280 x 210 mm | ||
| Protection Type | IP 54 | ||
| Protection class | I | ||
| Supply voltage | 115 VAC / 230 VAC (50 – 60 Hz) | ||
| HV-terminals charging discharging | 2 4 | ||
| Power consumption | approx. 140 VA | ||
| Output voltage charging discharging | approx. 40 kVDC approx. 7–8 kVAC | ||
| Short-circuit output current charging discharging | (lk) ≤ 4,5 mA (lk) ≤ 5 mA | ||
| Signaling contacts monitoring | Load rating 24 VAC / 35 VDC; max. 50 mA | ||
| Connectable length (discharging) | max. 18 m (ionizing unit incl. HV-cable) | ||
| Operating temperature | +5 °C to +45 °C | ||
| Storage/transport temperature | -15 °C to +60 °C | ||
| Weight | 16 kg | ||
| Mains cable | 2,6 m; fixed to the device | ||
Subject to technical changes!
Accessories
| Round plug | Order-No.: X-0616 | |
| Angled plug | Order-No.: X-5718 | |
| Signalling cable K1 shielded incl. Round plug | 5 m | Order-No.: 06.8941.000 |
| 10 m | Order-No.: 06.8941.001 | |
| 20 m | Order-No.: 06.8941.002 |
